Choosing the right camera for machine vision identification comes down to matching the sensor resolution, interface, and frame rate to your inspection task-and, often, to a budget that can range from a few hundred dollars down to under fifty. The four used cameras here show that spread clearly: a Basler 20MP USB 3.0 model at $449.99, a Basler 8.9MP GigE model at $399.99, a Basler Ace 2 8.3MP 4K GigE model at $329.99, and a VRMagic USB camera with a Tamron zoom lens at $45.00. Which one is right for you depends on whether you need maximum resolution, a familiar GigE interface, or a low-cost way to prototype an identification setup.
If you need the highest resolution, the Basler acA5472-17um is the most capable on paper, with a 20MP sensor and 17 fps over USB 3.0. If you prefer GigE with Power over Ethernet, the Basler acA4096-11gm and a2A3840-13gmBAS both support PoE, with the a2A3840 offering 4K resolution at 13 fps. For a minimal budget, the VRMagic bundle with a Tamron 12VM412ASIR zoom lens gives you a USB camera plus lens for $45, but it is not a plug-and-play webcam and requires VRMagic software or API.
| Model | Listed Price | Price Bar | Interface | Key Spec |
|---|---|---|---|---|
| Basler acA5472-17um 20MP | USD 449.99 | USB 3.0 | 20 MP, 17 fps | |
| Basler acA4096-11gm 8.9MP | USD 399.99 | GigE | 8.9 MP, 13.1 fps | |
| Basler a2A3840-13gmBAS Ace 2 | USD 329.99 | GigE | 8.3 MP, 13 fps | |
| VRMagic + Tamron 12VM412ASIR | USD 45.00 | USB | C-mount zoom lens |
Quick Decision Matrix
- Highest resolution: Basler acA5472-17um 20MP, if you need maximum detail for identification.
- GigE with PoE and 4K: Basler a2A3840-13gmBAS Ace 2, in a compact body.
- Global-shutter GigE: Basler acA4096-11gm, but be aware of its for-parts / not-working status.
- Lowest price / prototype: VRMagic + Tamron, if you are comfortable with driver setup.

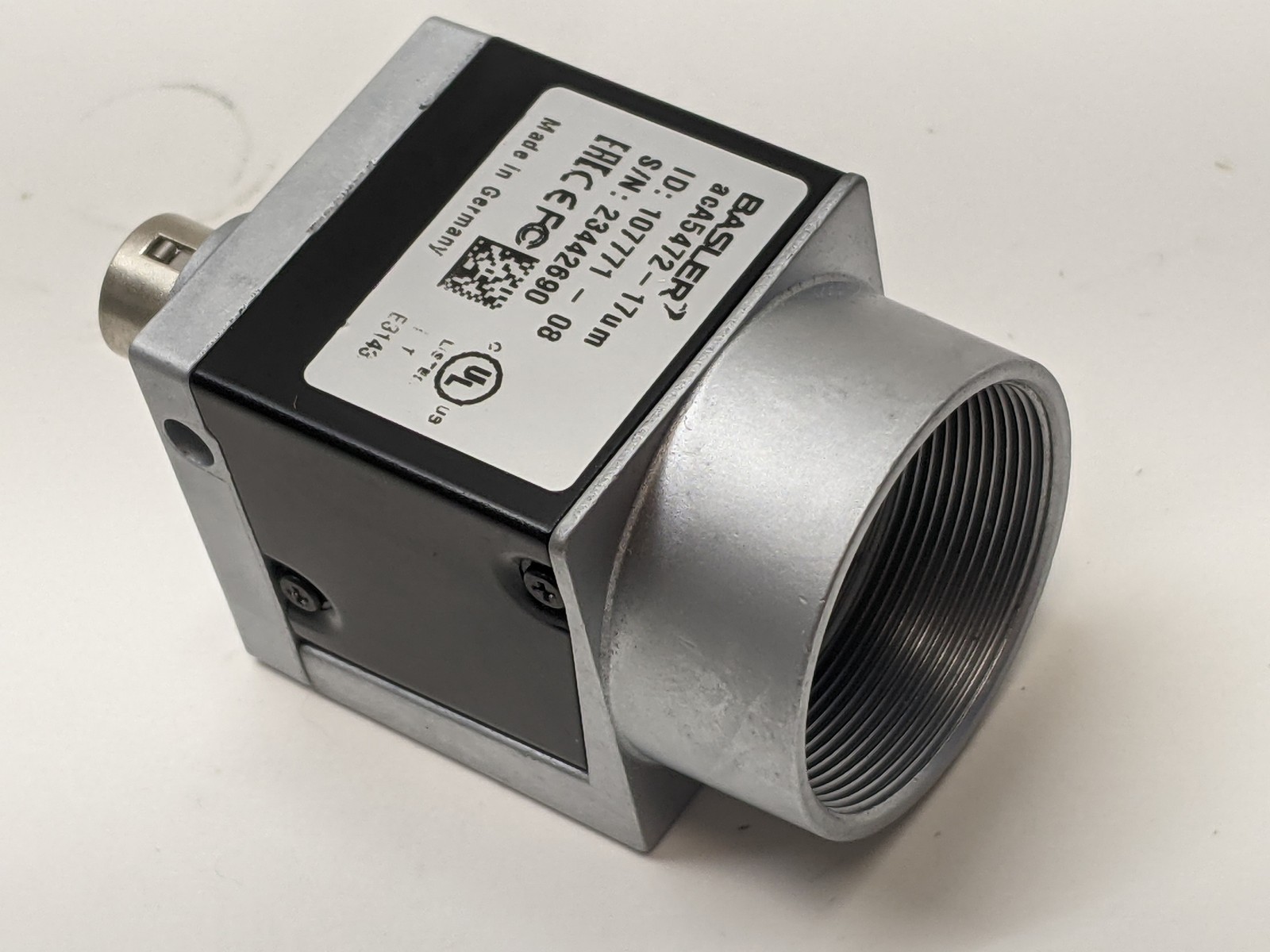

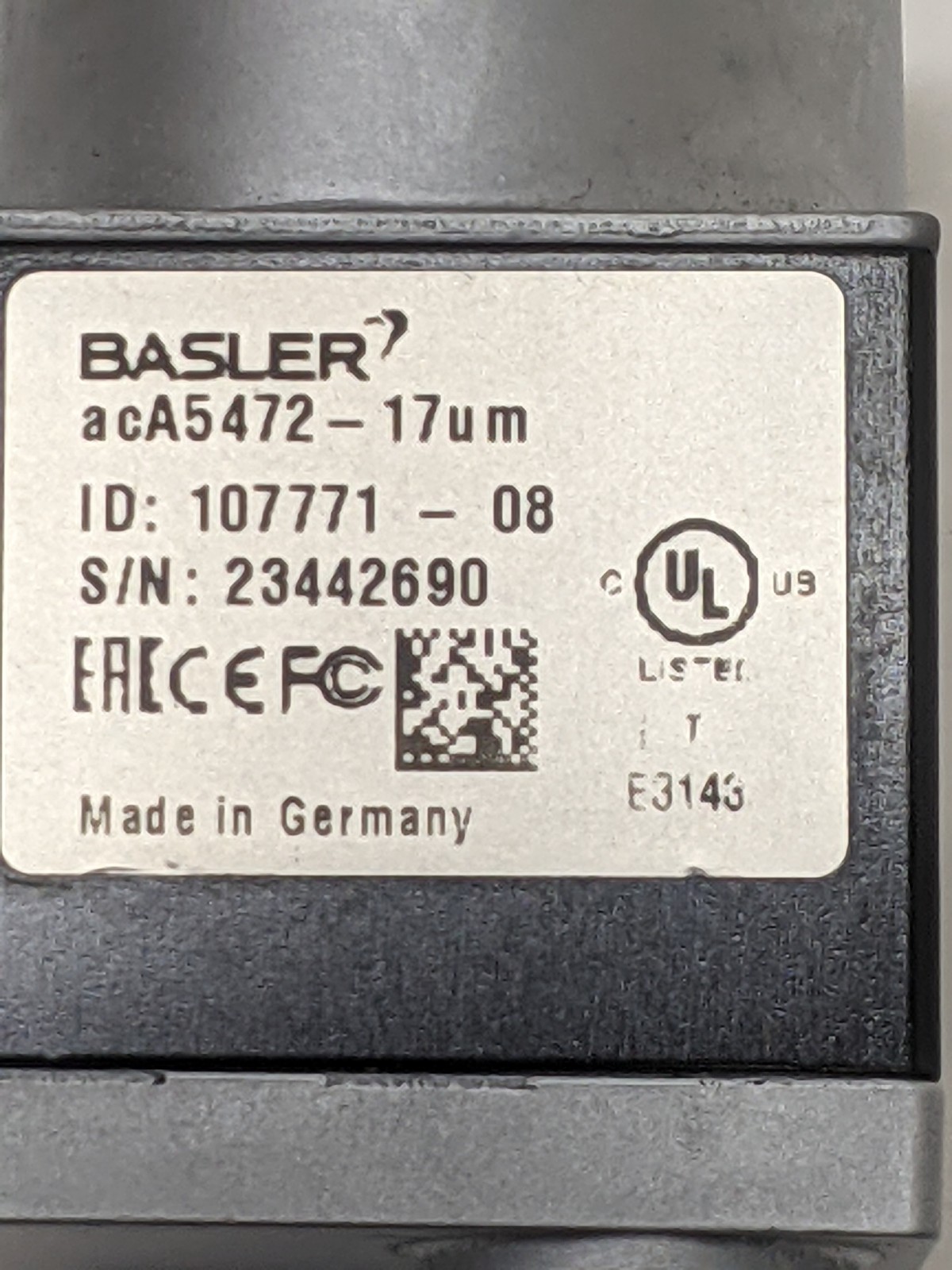

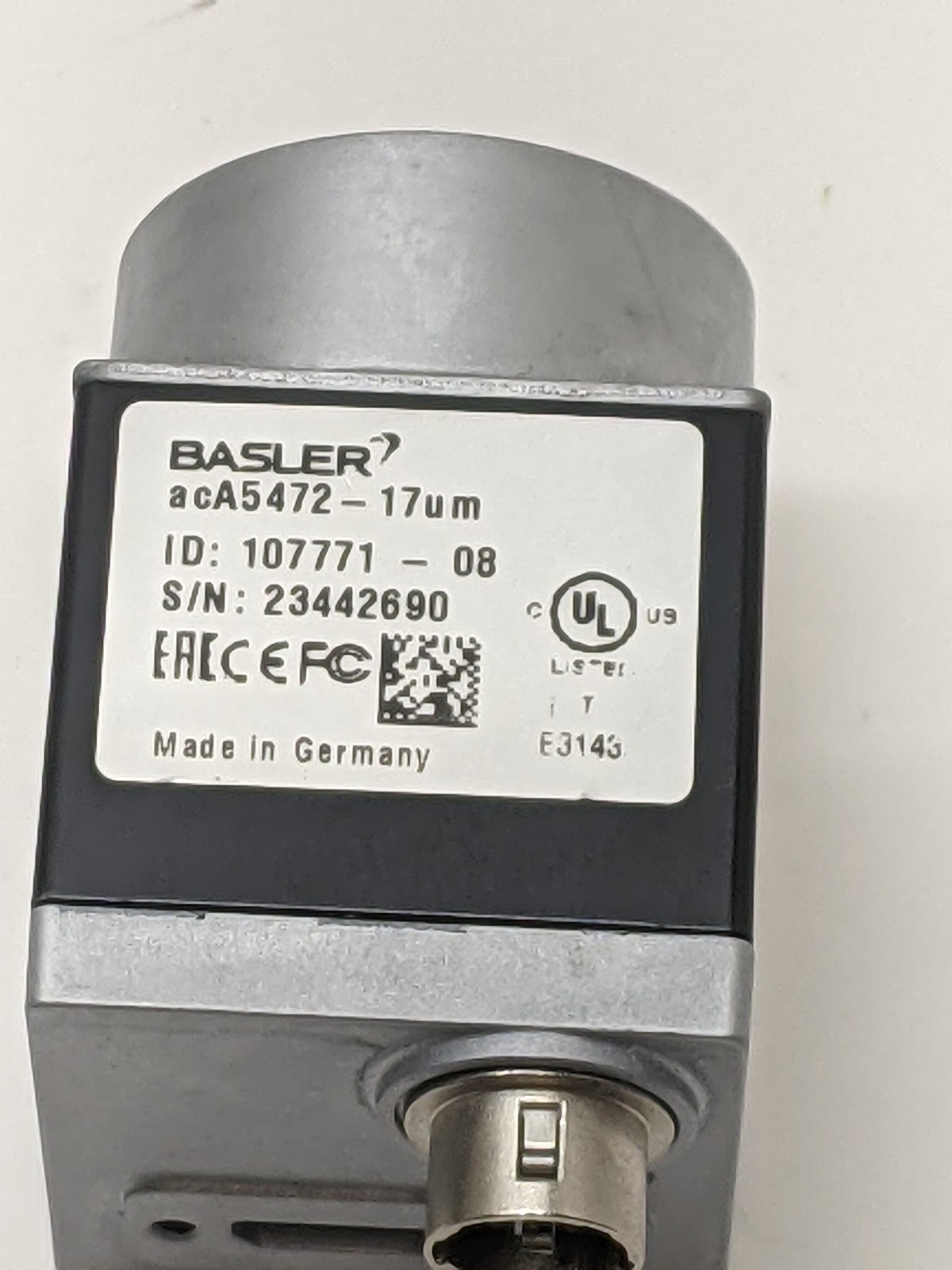

Basler acA5472-17um 20MP USB 3.0 Mono C-Mount Machine Vision Camera

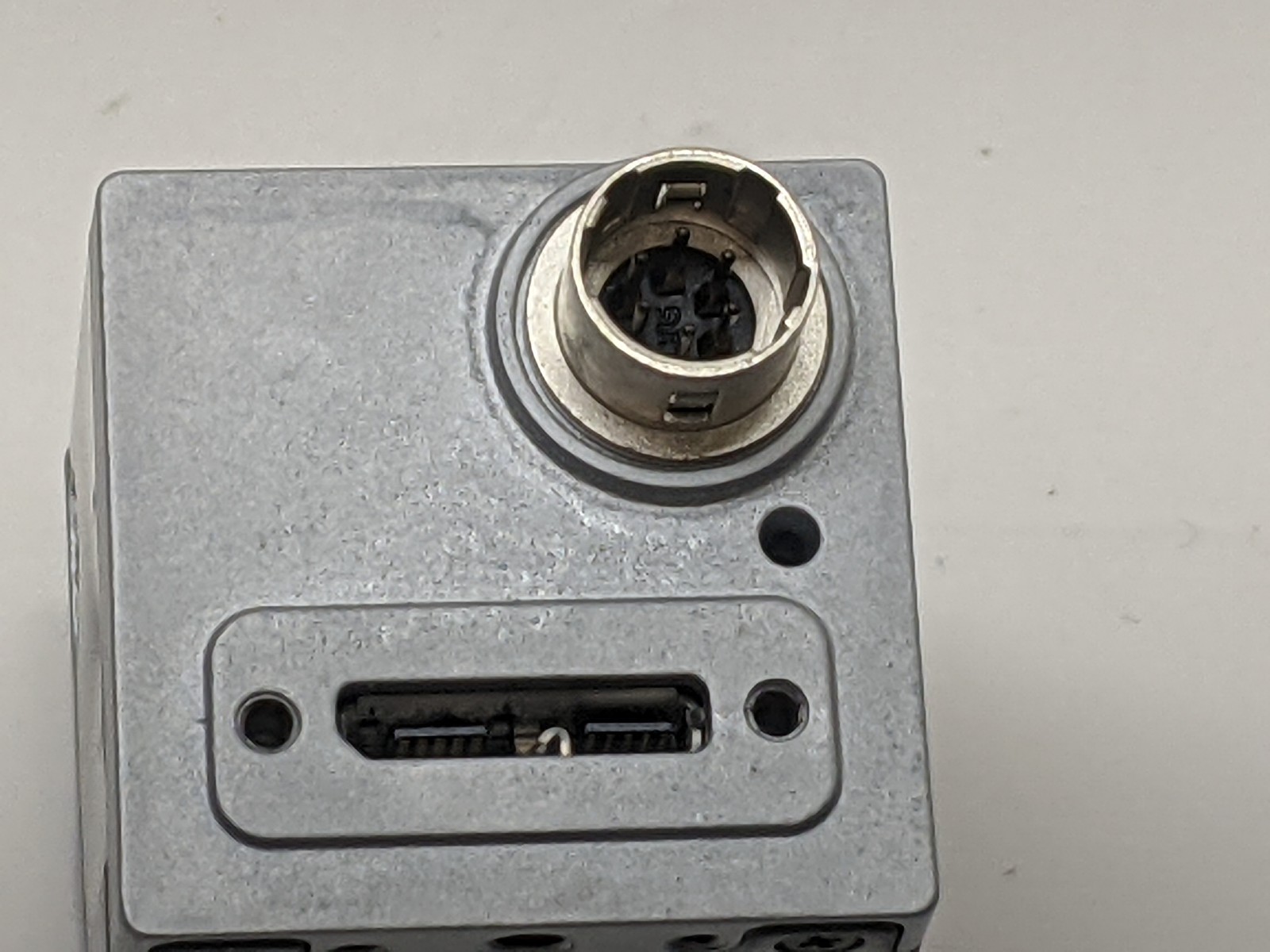

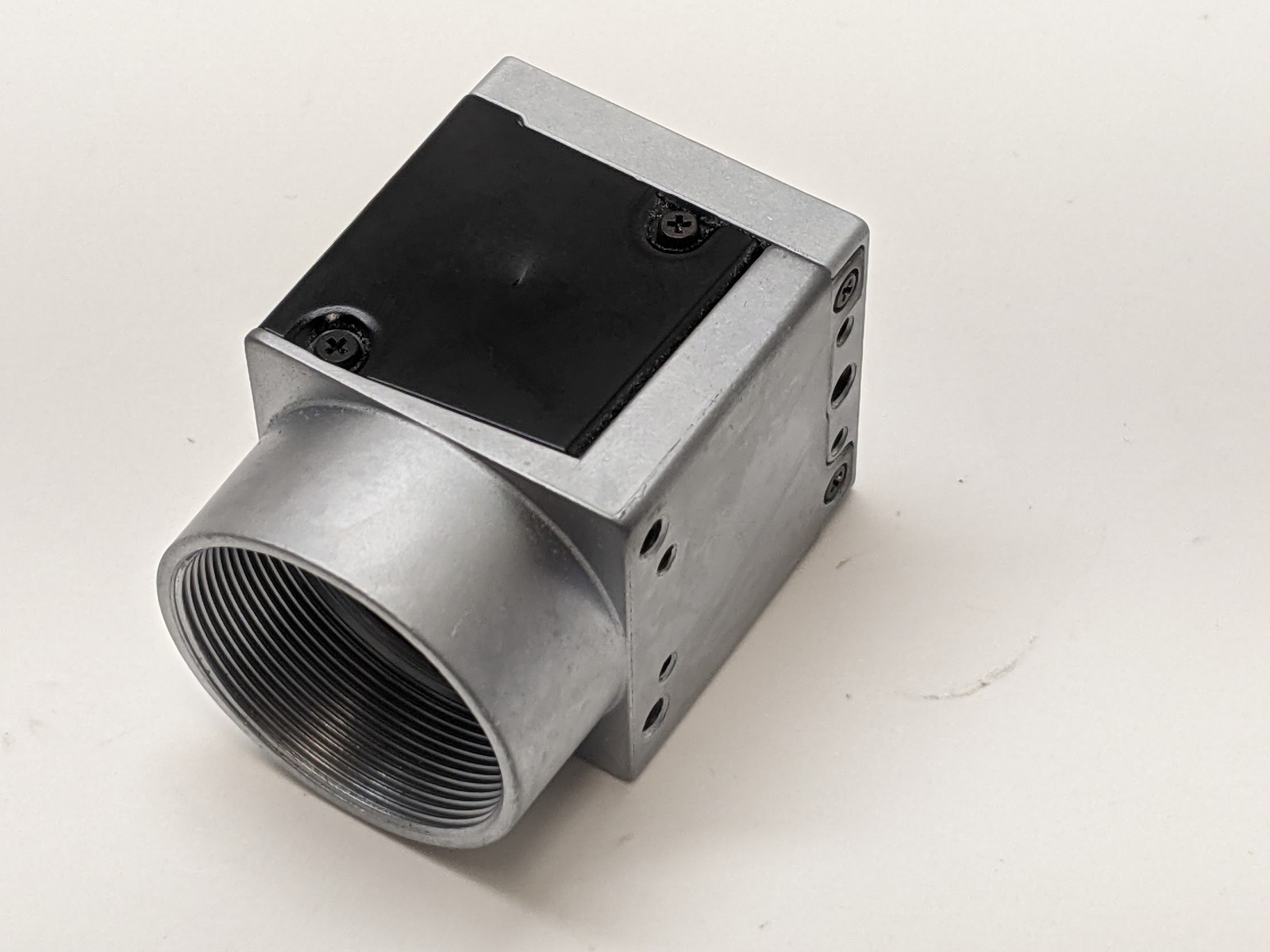

If your identification task needs the most detail, this Basler offers the highest listed resolution in the group: 20MP from a Sony IMX183 CMOS sensor, at 17 fps over USB 3.0. The C-mount interface lets you attach a variety of lenses, and the camera is powered through USB. It is a used unit with normal wear and a small dent on the housing, and it is sold without a lens, USB cable, I/O cable, or other accessories. The description also states that no functional testing was performed, so the operational status is not confirmed. Choose this one if the resolution and USB 3.0 speed are worth that uncertainty for your machine vision identification project.

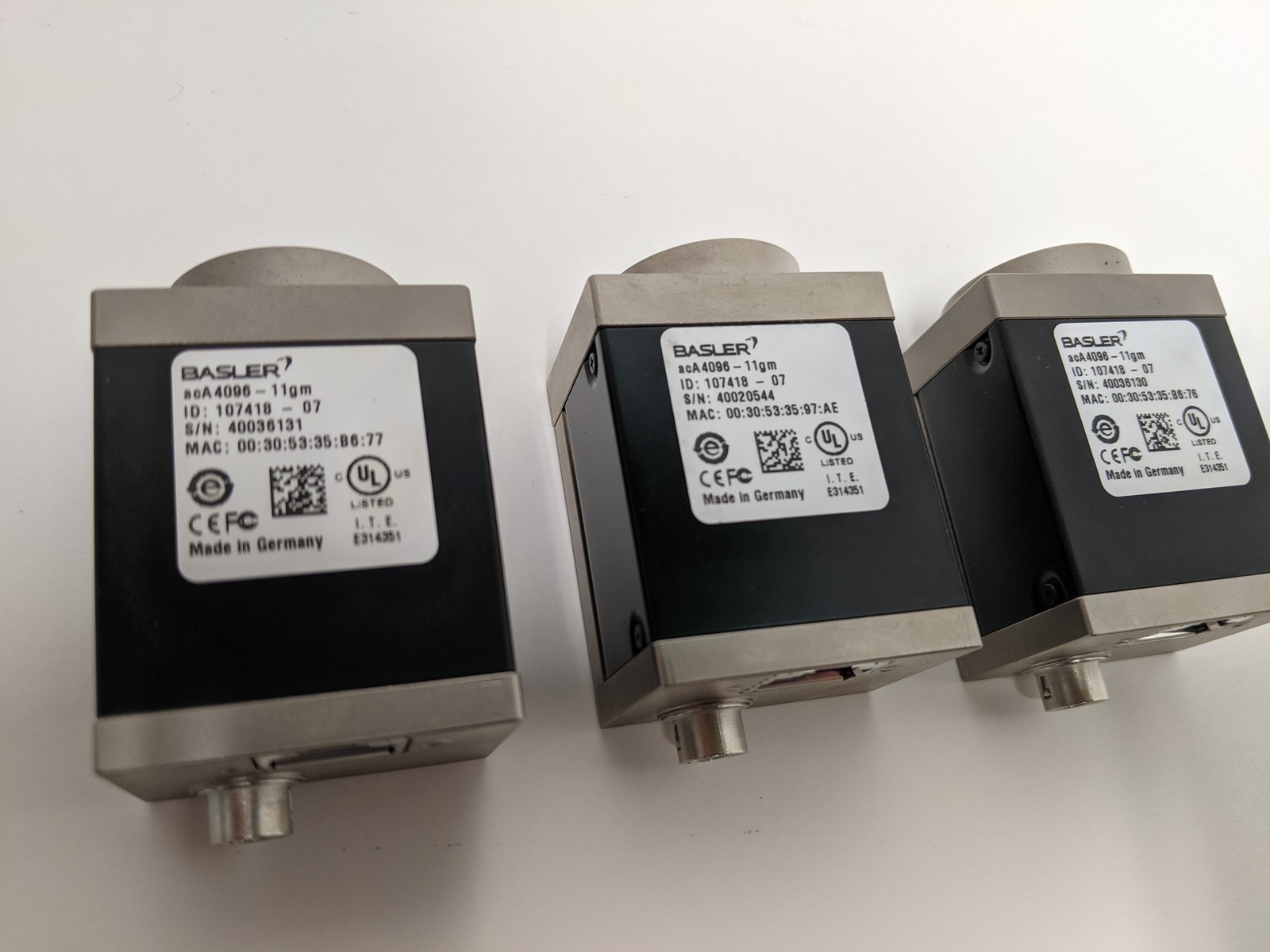

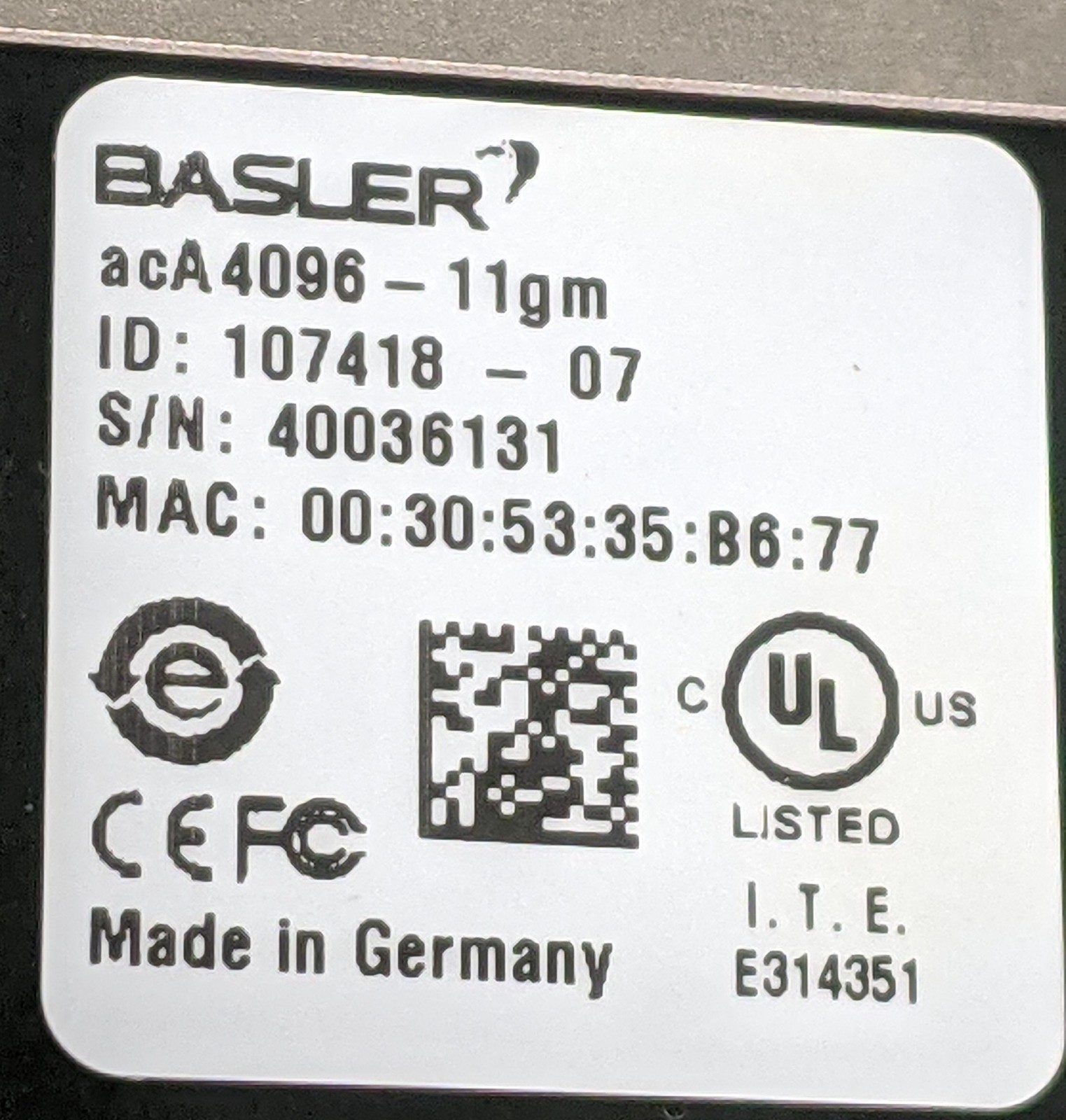

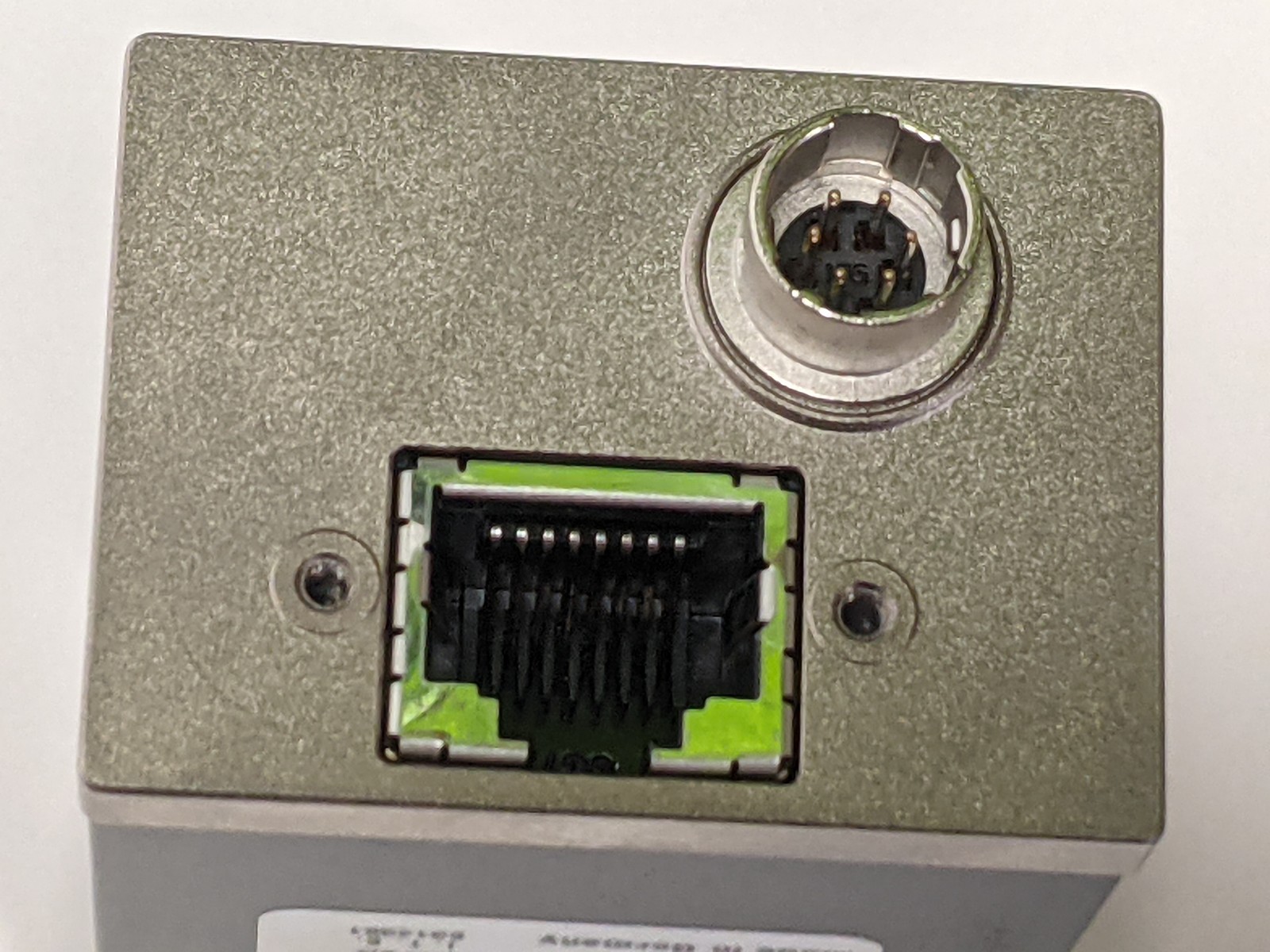

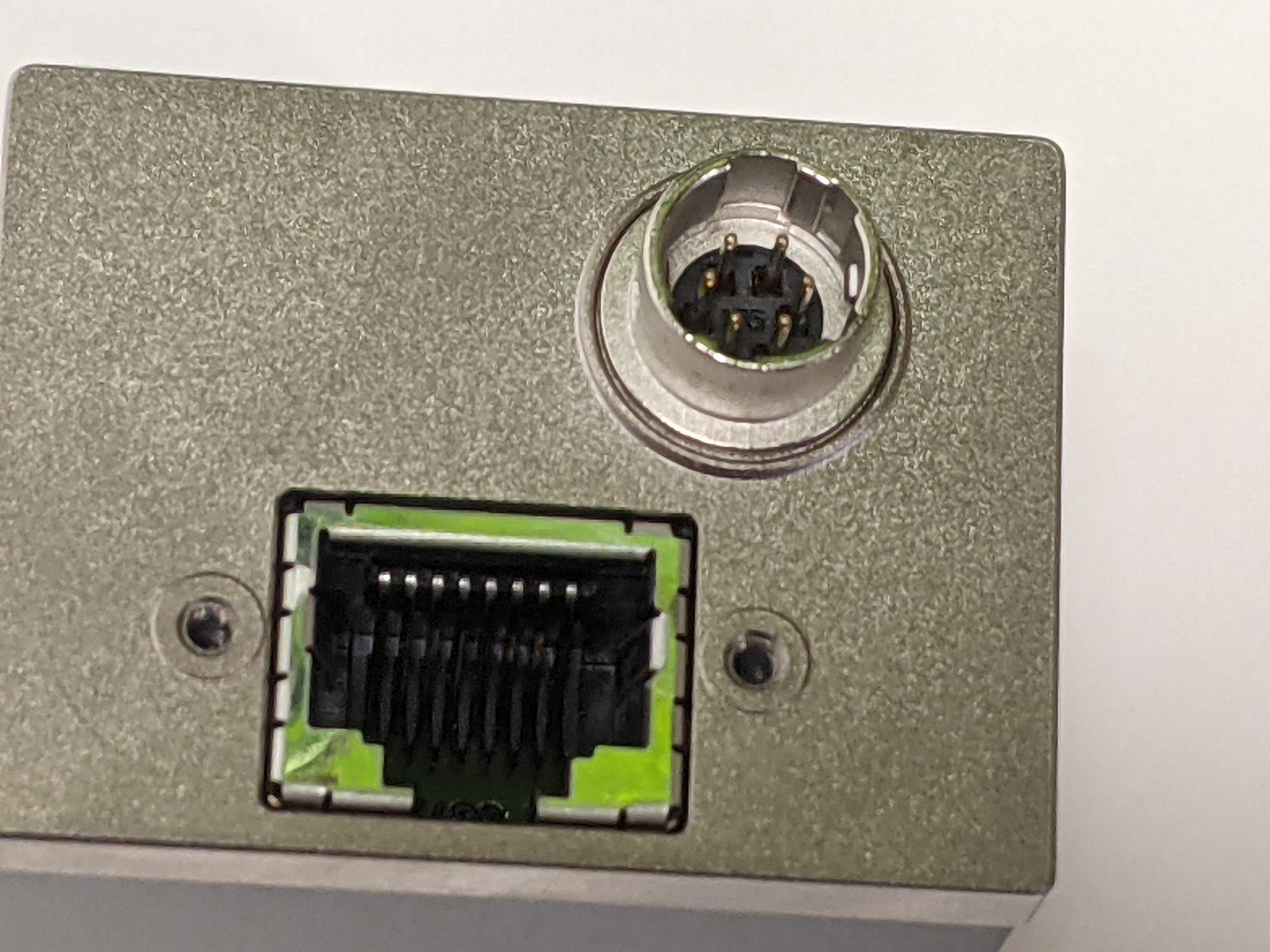

Basler acA4096-11gm 8.9MP Mono GIGE POE Machine Vision Camera C-Mount

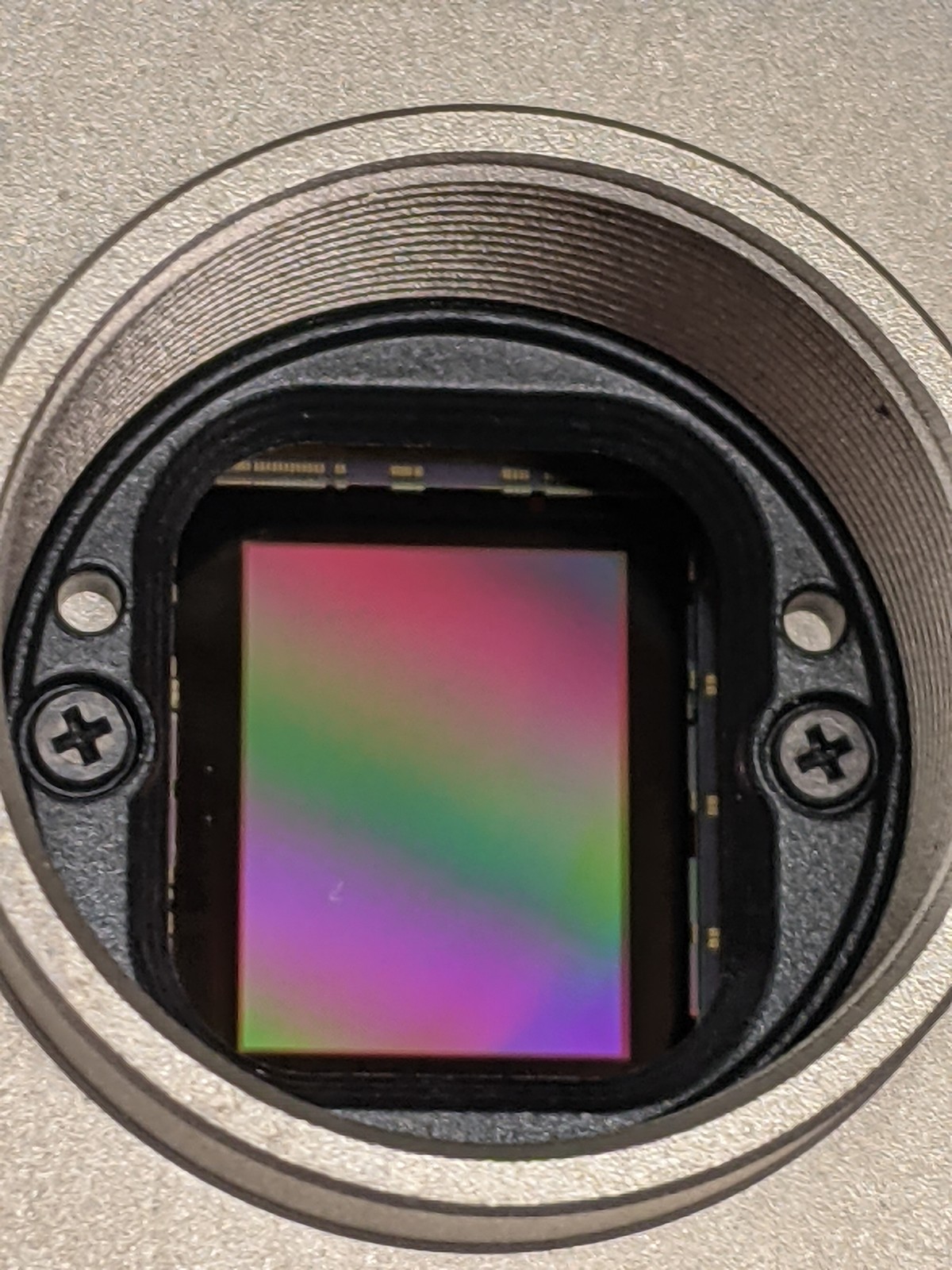

This Basler ace L model uses a Sony IMX267LLR 1-inch CMOS global-shutter sensor, giving you 8.9MP resolution and a Gigabit Ethernet interface. Power can come from PoE or 12-24 VDC through the I/O connector, which can simplify cabling in a fixed inspection cell. The listed price is $399.99. The caveat is that this unit is categorized as used and listed for parts or not working, since no functional testing was performed. The imaging sensor is exposed because no lens or dust cap is installed, and no lens, Ethernet cable, I/O cable, or power supply is included. If you are comfortable with a possible non-functional unit, this is an option; otherwise, the other Baslers offer a more defined path.
Basler a2A3840-13gmBAS Ace 2 8.3MP 4K 13FPS Mono GIGE POE Machine Vision Camera
This Ace 2 camera gives you 4K resolution (3840 x 2160) at 13 fps in a compact 55.5 x 29 x 29 mm body. It uses a Sony IMX334 sensor and supports GigE with PoE or 12-24 VDC power, plus an M8 6-pin I/O connector and C-mount lenses. The listed price is $329.99, and the unit comes in original protective packaging with a Basler getting started guide, though no lens, cable, or power supply is included. It is a used unit, and the description says no testing was performed, so confirm your own confidence level before relying on it. This is a good middle-ground choice if you want 4K identification with PoE and a compact footprint.
USB Machine Vision Camera: VRMagic Image Sensor + Tamron 12VM412ASIR Zoom Lens
At $45.00, this is the budget pick in the group, and it bundles more than the camera: a VRMagic VRmC-3+ module, a Tamron 4-12mm C-mount IR-corrected zoom lens (12VM412ASIR), and an aluminium mounting bracket. That makes it an attractive starting point for a low-cost machine vision identification experiment or learning setup. The tradeoff is that it is not a plug-and-play webcam. It requires driver installation and VRMagic software or API to work, so factor in setup time. The used condition also means you should be ready to work with older imaging hardware. If you want to explore identification on a tight budget and already have some software-development comfort, this bundle offers a full set of hardware for the price.
Final Recommendation by Use Case
- For the highest resolution: Basler acA5472-17um 20MP at $449.99, if the USB 3.0 interface and 20MP sensor match your inspection needs.
- For GigE with PoE and 4K: Basler a2A3840-13gmBAS Ace 2 at $329.99, in a compact package.
- For a global-shutter GigE option: Basler acA4096-11gm at $399.99, but keep in mind it is marked for parts or not working.
- For minimal budget / prototyping: VRMagic + Tamron at $45.00, if you are ready to install drivers and use VRMagic software.
