Choosing between a large bare control enclosure and a compact pre-wired panel can be tricky. You might be planning a custom control build where you want to add your own breakers, terminals, and DIN-rail accessories, or you might need a panel that arrives with key components already mounted. These two control panel enclosures take very different routes to that goal, and the right pick depends on the size of your installation and how much wiring you want to do yourself.
Quick Verdict
If you need a white 24"x9"x12" panel-mount cabinet with room to lay out your own components, the SCE enclosure is the one to look at. If you want a compact wall-mounted steel enclosure with a time counter, illuminated pushbutton, and 50A Hubbell Twist-Lock plug already installed, the pre-wired 50A panel is the more ready-to-connect option.
Comparison at a Glance
| Product | Listed Price | Price Bar | Mounting | Notable Details |
|---|---|---|---|---|
| SCE 24"x9"x12" Enclosure | USD 113.99 | Panel | White finish, 24x9x12 model | |
| 50A Pre-Wired Enclosure | USD 78.75 | Panel | Hour meter, pushbutton, 50A Hubbell plug |
Where Each Product Wins
- Choose the SCE enclosure when you want more space for a custom component layout. The 24" length, 9" depth, and 12" height give you room to arrange terminals, breakers, contactors, and other gear in a white panel-mount cabinet. This is the listing that rewards careful planning.
- Choose the pre-wired 50A panel when you want a more compact package that already includes a Siemens time counter, an illuminated dual pushbutton, and a Hubbell Twist-Lock 50A receptacle plug. It is built around a Schneider Electric Spacial S3D wall-mounted steel enclosure, so it is a much smaller footprint and can shorten the job if the existing components match your needs.
Product Notes
SCE 24"x9"x12" Industrial Control Panel Enclosure
This SCE enclosure is the larger of the two listings, with outer dimensions of 24" long, 9" deep, and 12" high. If you are building a control panel from scratch, that space gives you room to arrange terminals, breakers, DIN-rail components, and wiring in a white, panel-mount cabinet. The model designation 24x9x12 Enclosure, 3R, 12, 4 accompanies the listing, so you know exactly which size variant you are looking at. The listing focuses on the cabinet itself rather than internal components, so expect to handle the component selection, mounting, and wiring as part of your own build. That makes it a good match for someone who has a specific component list or wants to standardize the internal layout. The trade-off is that you must bring all of the internal hardware and plan the wiring diagram yourself, which means more engineering time before the panel is operational.

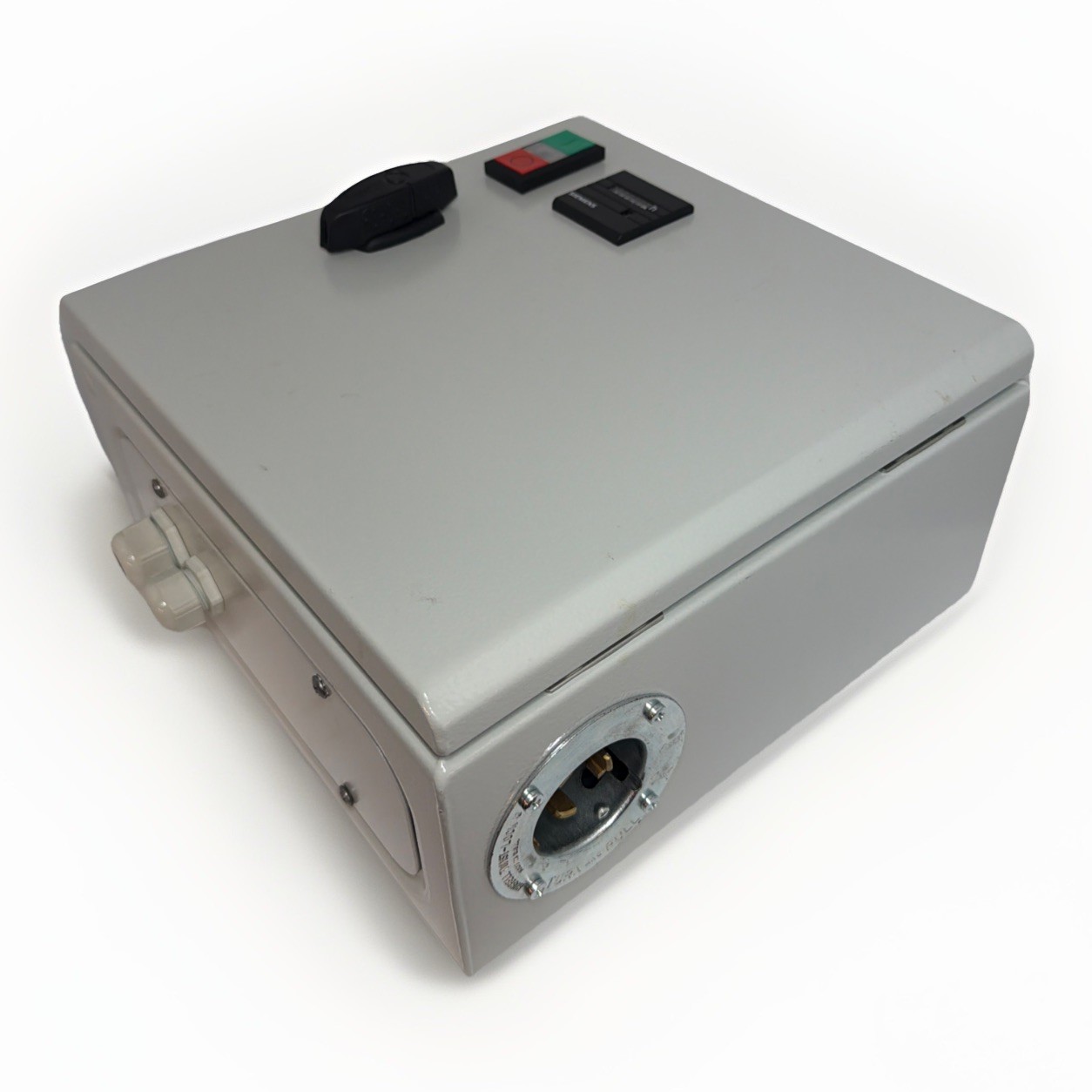

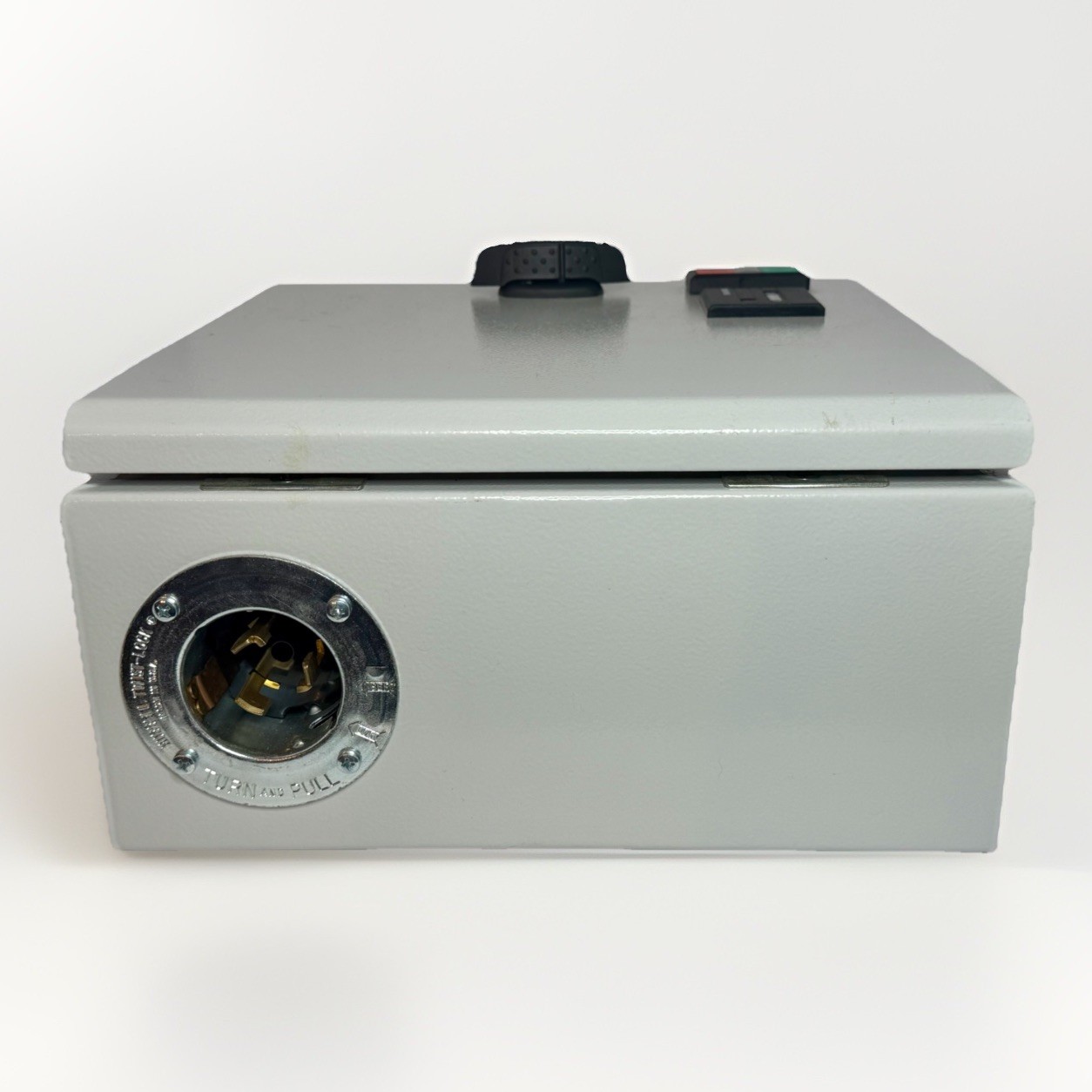

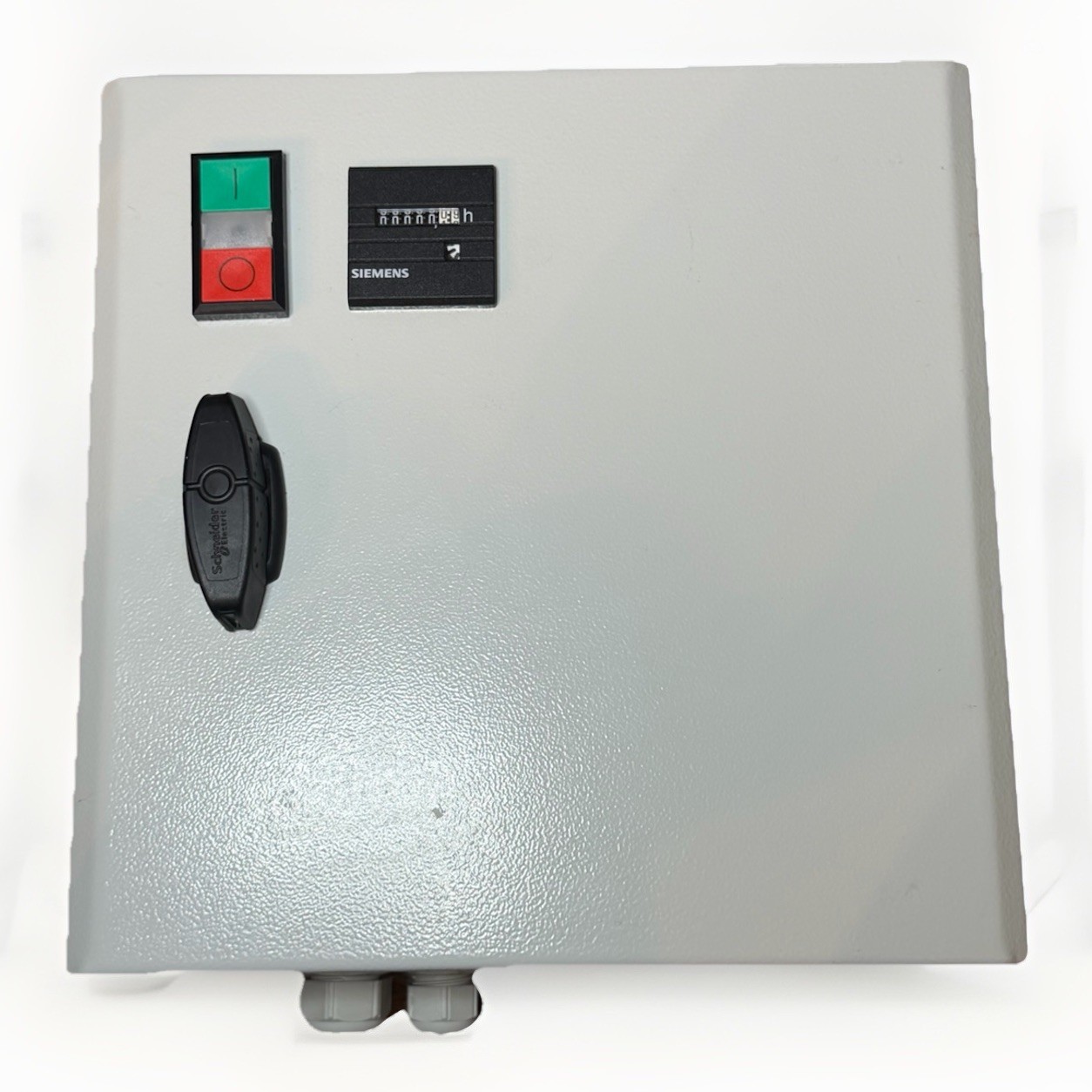

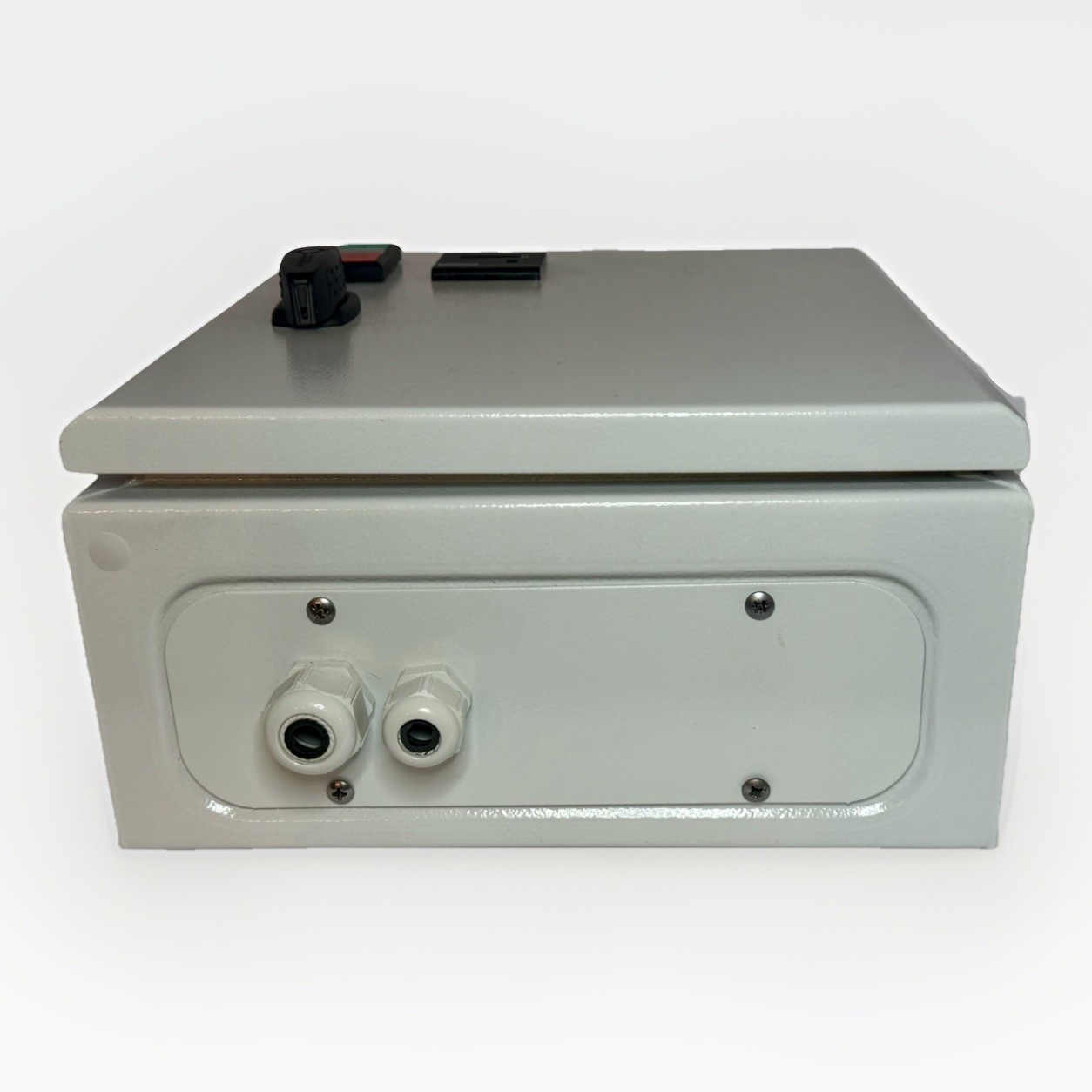

50A Pre-Wired Control Panel Enclosure w/ Hour Meter & Hubbell Plug

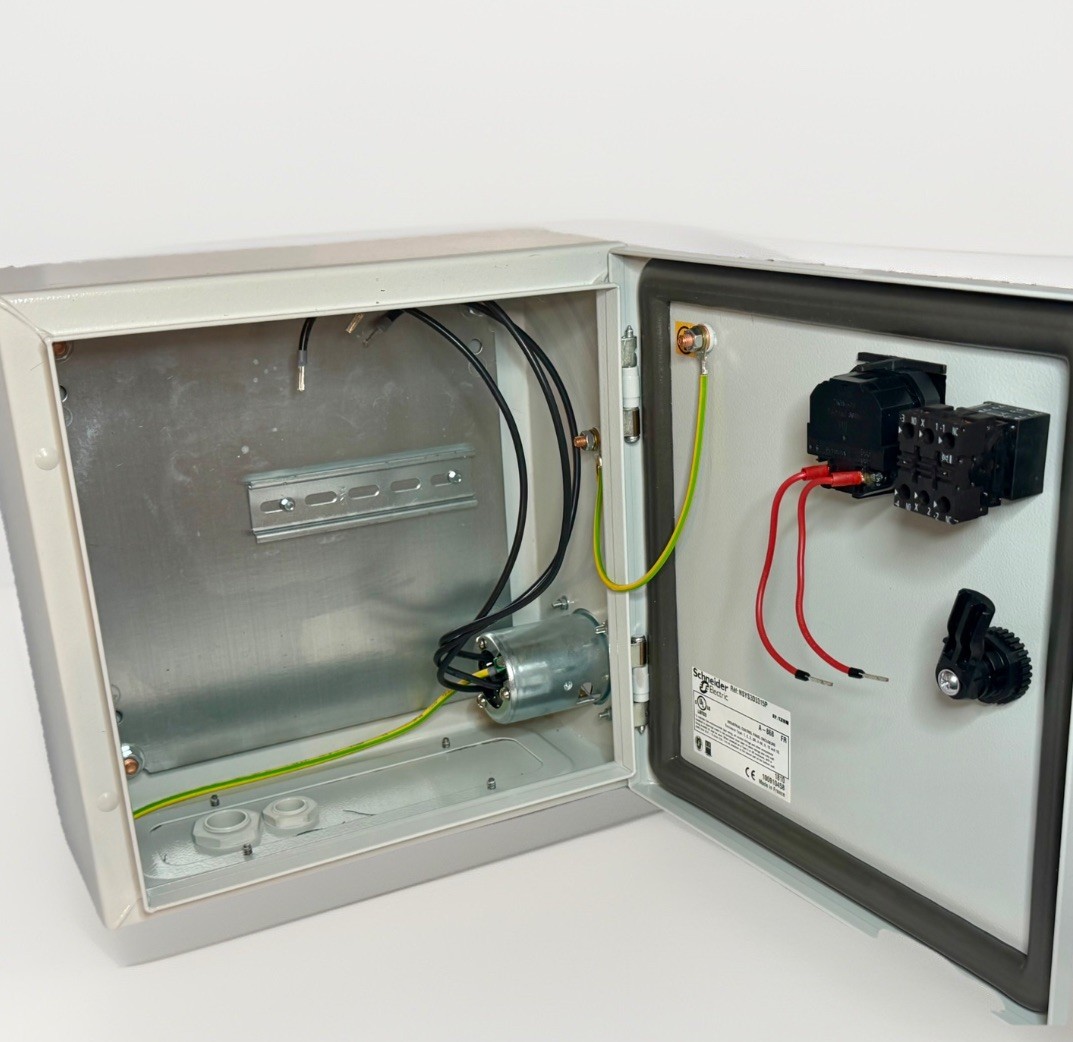

This compact unit comes from a Schneider Electric Spacial S3D wall-mounted steel enclosure, and it already carries a Siemens time counter, an illuminated dual pushbutton, and a Hubbell Twist-Lock 50A receptacle plug. The time counter is a Siemens 7-digit, 230 VAC, 60 Hz unit with an IP20 enclosure and panel mounting, and the pushbutton is a Siemens 3SB3101-8BC21 with a 3SB3400-0B contact block rated at 10A, 300/400VAC, 22mm. The Hubbell plug is a 250 VAC, 50 amp, self-grounding inlet with 3 poles, 4 wires, and a metallic male plug receptacle. If you want a panel that is closer to drop-in for a 50A application, this pre-wired listing saves you from sourcing those individual components. The trade-off is size: the enclosure measures roughly 11.8" by 11.8" by 5.9", which is much tighter than the SCE cabinet, so you need to confirm your wiring and equipment will fit inside that footprint before committing.
Final Choice by Use Case
Choose the SCE 24"x9"x12" enclosure if your project calls for a spacious, white panel-mount cabinet and you plan to select your own internal controls and wiring. Choose the 50A pre-wired panel if you need a compact enclosure with a time counter, illuminated pushbutton, and 50A Hubbell plug already in place. For a quick 50A control setup or an application that fits the pre-installed component set, the pre-wired unit is the more complete starting point. For a custom build with room to grow and the freedom to choose every internal part, the SCE cabinet gives you the blank canvas.
