Choosing servo stepper motion control comes down to one practical question: are you adding control signals to an existing stepper setup, building a CNC control system, or replacing the motion hardware with an AC servo motor and driver kit? These four options cover very different roles, so the lowest listed price is not automatically the right fit.
Quick take
The 12V-24V Stepper Motor Driver Controller PWM Pulse Signal Generator Speed Control is the focused choice for generating pulse or PWM control signals for a stepper driver. The two GRBL boards sit in the middle: the 32bit GRBL 4-Axis Stepper Motor Driver Controller Board For CNC Laser Engraver is aimed at laser-engraver control, while the GRBL 4-Axis Stepper Motor Driver Controller For CNC Router Laser Engraver Cutter speaks directly to router, laser, and cutter builds. The 400W 1.27NM CNC AC Servo Motor NEMA24 220V Servo Driver Controller Kit 3000RPM is the all-in-one motor-and-driver direction for users moving into AC servo motion control.
Listed-price comparison
| Option | Listed price | Price position |
|---|---|---|
| 12V-24V Stepper Motor Driver Controller PWM Pulse Signal Generator Speed Control | USD 11.64 | |
| 32bit GRBL 4-Axis Stepper Motor Driver Controller Board For CNC Laser Engraver | USD 41.96 | |
| GRBL 4-Axis Stepper Motor Driver Controller For CNC Router Laser Engraver Cutter | USD 38.68 | |
| 400W 1.27NM CNC AC Servo Motor NEMA24 220V Servo Driver Controller Kit 3000RPM | USD 339.99 |
The controller boards are grouped closely in listed price, while the servo kit occupies a different category of purchase because its title includes both a 400W motor and a servo driver controller.
Decision matrix
- Pick a signal generator when the build already calls for a separate stepper driver and needs adjustable pulse or PWM signals.
- Pick the laser-focused GRBL board for a CNC laser engraver control board with PWM/TTL laser-power adjustment and support for a 12/24V laser interface.
- Pick the router, laser, and cutter GRBL board when those machine roles are central to the project and rotary-axis support matters.
- Pick the AC servo kit when the goal is a NEMA24 220V servo motor and driver combination with position, speed, and torque control modes.
Product notes

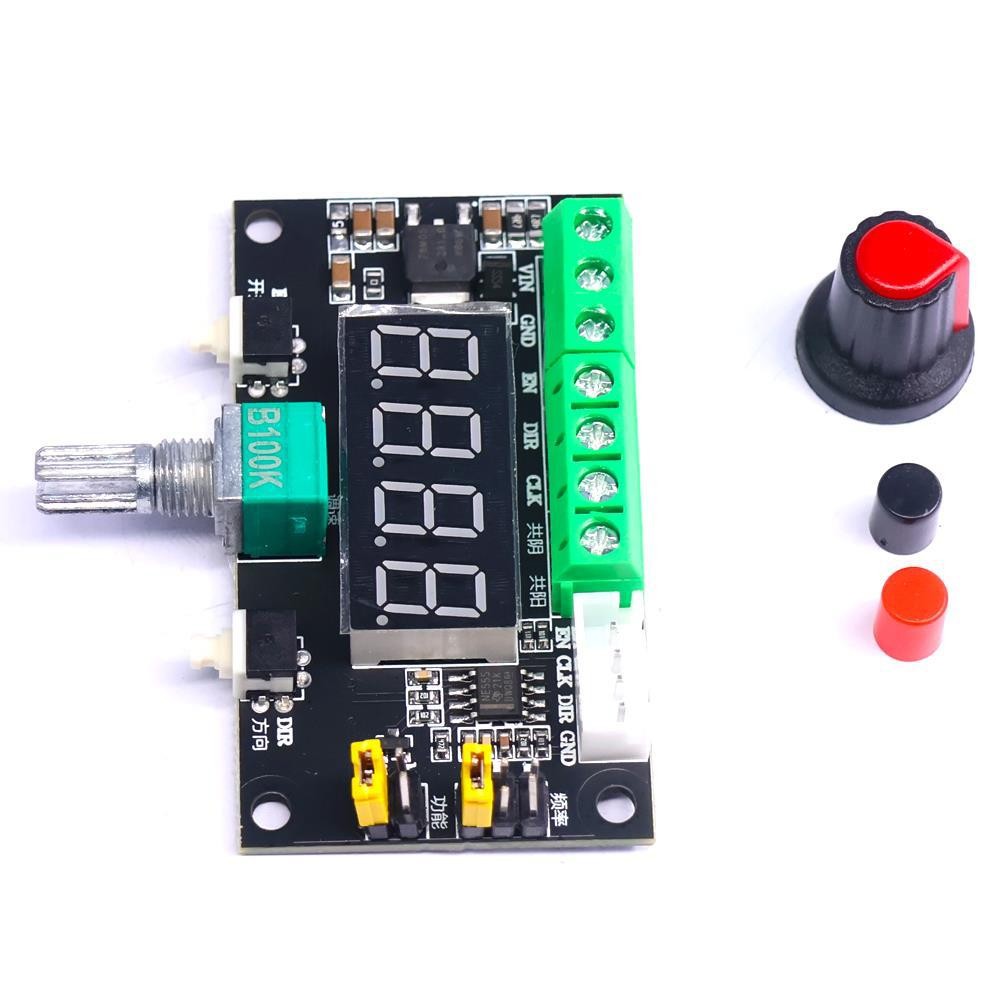

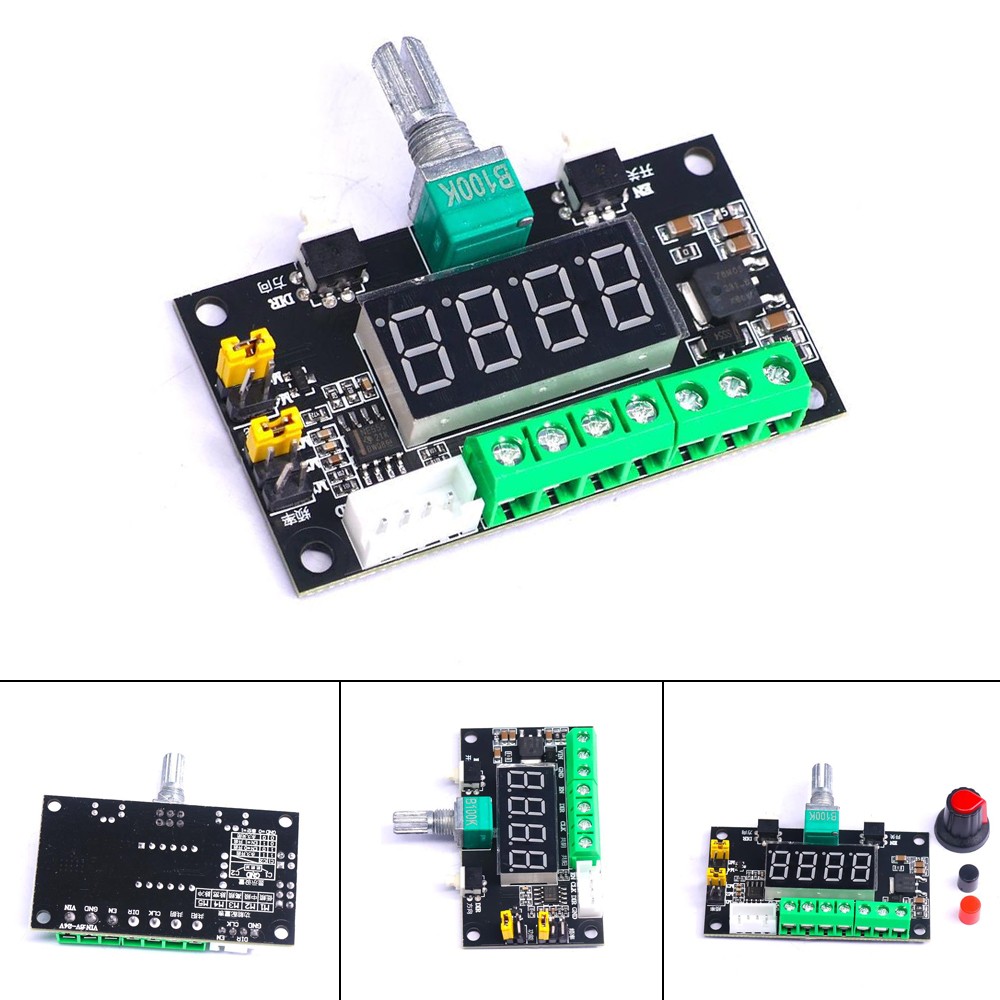

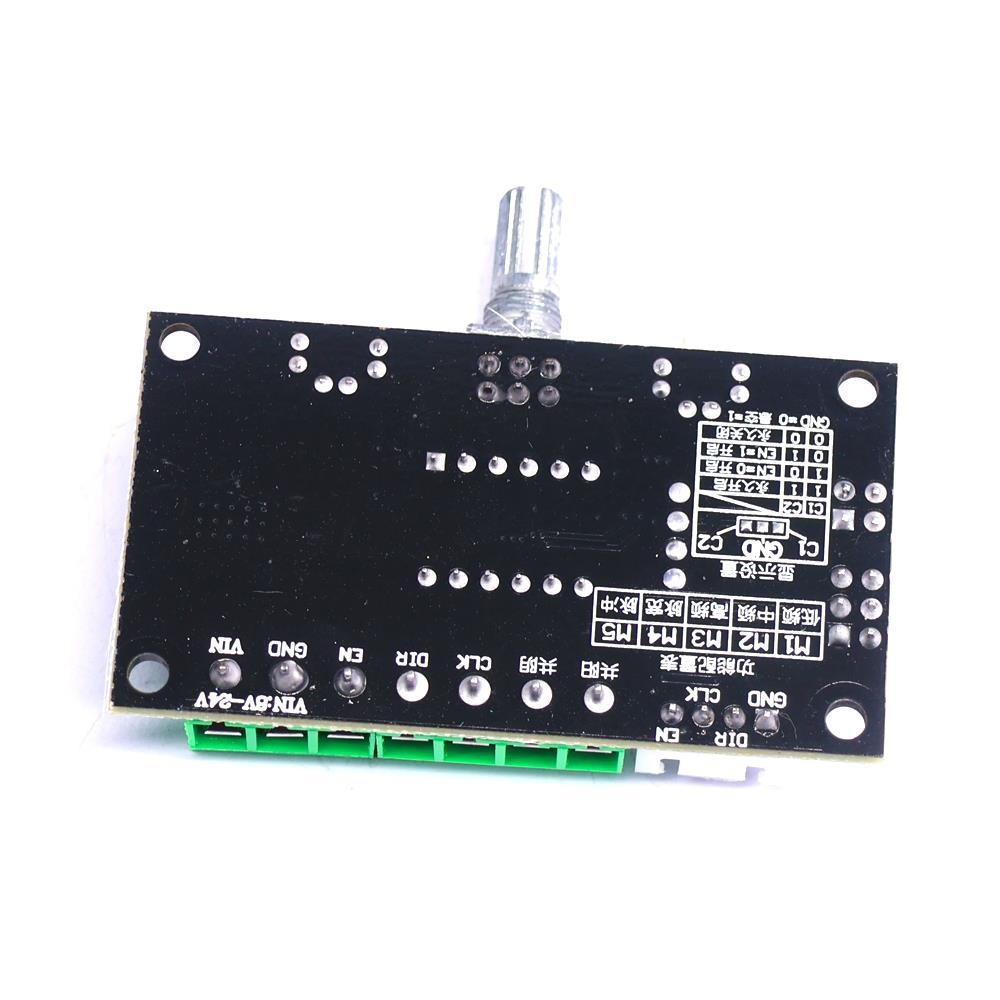

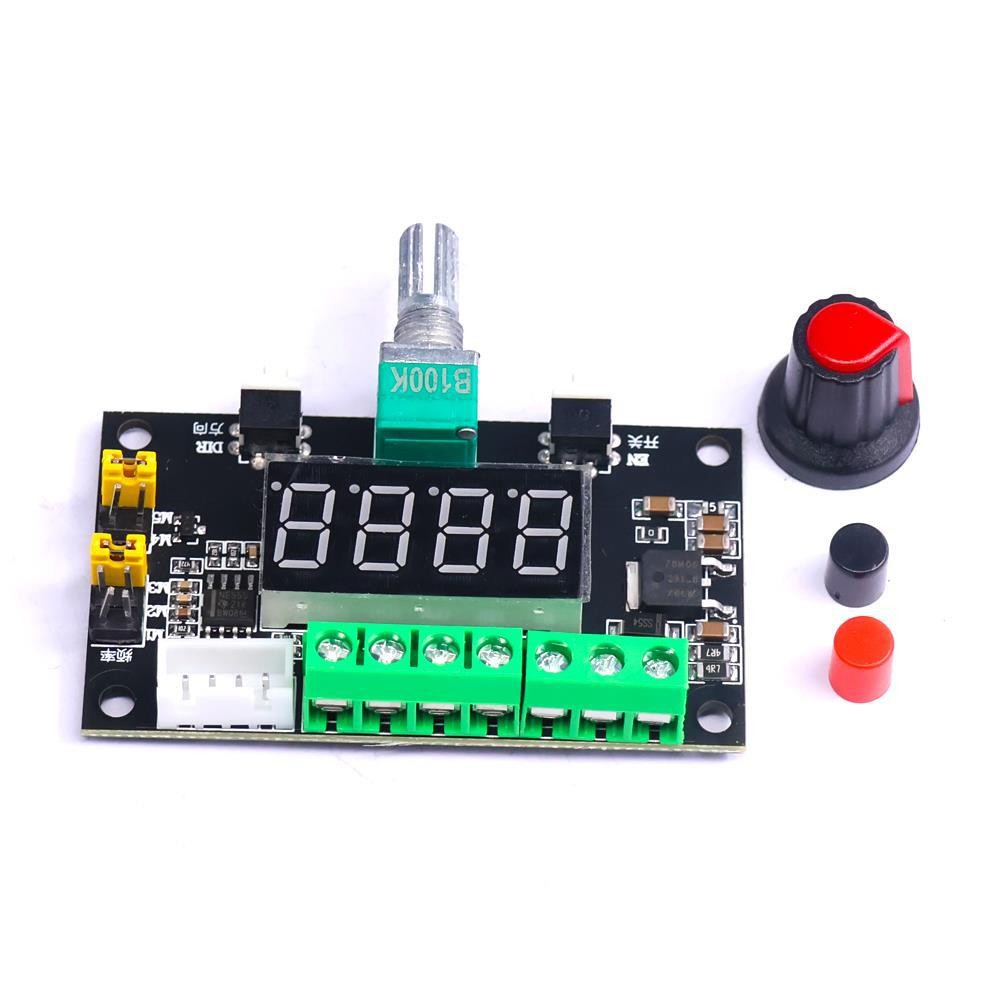

12V-24V Stepper Motor Driver Controller PWM Pulse Signal Generator Speed Control
Choose this compact module when the key need is generating control signals for a stepper-motion project rather than running a full CNC machine from a multi-axis board. It supports 12V/24V power and offers jumper-selectable pulse signal or PWM signal output, plus forward/reverse control. The description also identifies low-, medium-, and high-frequency signal ranges, giving builders several signal-setting paths within a basic control platform. Its important limitation is explicit: a stepper driver must be installed to control the stepper motor. That makes this a focused controller module for a system assembled from separate motor, driver, and DC power components.
32bit GRBL 4-Axis Stepper Motor Driver Controller Board For CNC Laser Engraver
This LUNYEE board is a strong fit for a CNC laser engraver project that needs a 32-bit GRBL control board rather than a standalone pulse generator. Its listed design includes X/Y/Z/A operation, Y-axis double drive, onboard five-drive capability, a Type-C USB2.0 data socket, and optocoupler-isolated signals. PWM/TTL software laser-power adjustment and a 10kHz PWM output are also called out, alongside support for 12/24V laser interfaces and 300W/500W spindles. The boundary to keep in mind is its board-centered format: it is a 4-axis control board, not a NEMA24 AC servo motor and driver kit. That distinction matters when selecting motion hardware.
GRBL 4-Axis Stepper Motor Driver Controller For CNC Router Laser Engraver Cutter
Choose this GRBL controller when the project description is closer to a CNC router, laser engraver, or cutter than to a laser-only machine. The board uses a 32-bit MCU and lists X/Y/Z/A operation, Y-axis double drive, onboard five drives, and rotary-axis support. It also includes optocoupler isolation, a Type-C USB2.0 data socket, and compatibility with 300W/500W spindles. Laser-oriented builds can use its supported 12/24V laser interface and PWM/TTL laser-power adjustment. Its limitation is simply its role: this is a controller board for stepper-based CNC motion, whereas users seeking position, speed, and torque modes in a motor-and-driver package should look to the AC servo kit.
400W 1.27NM CNC AC Servo Motor NEMA24 220V Servo Driver Controller Kit 3000RPM
This Yifeng kit is the choice for a CNC build that needs a 400W, 1.27NM NEMA24 AC servo motor paired with a servo driver controller. The listed 3000RPM specification, 220V actual rated input voltage, and 3.8 N.m peak torque make its specification set distinctly motor-focused. It supports position mode, speed mode, and torque mode, with MODbus communication and standard RS485 also stated. The kit description includes 3-meter power and encoder cables, and the motor carries an IP65 rating. The key limitation is the 220V electrical requirement, so it belongs in a build designed around that input voltage rather than a 12V/24V stepper-control arrangement.
Final recommendation by use case
For the simplest separate-component stepper platform, choose the 12V-24V Stepper Motor Driver Controller PWM Pulse Signal Generator Speed Control. For a laser engraver control board, the 32bit GRBL 4-Axis Stepper Motor Driver Controller Board For CNC Laser Engraver is the direct match. For a router, laser engraver, or cutter controller with rotary-axis support, select the GRBL 4-Axis Stepper Motor Driver Controller For CNC Router Laser Engraver Cutter. Choose the 400W 1.27NM CNC AC Servo Motor NEMA24 220V Servo Driver Controller Kit 3000RPM when the build calls for an AC servo motor and driver kit with multiple control modes.
